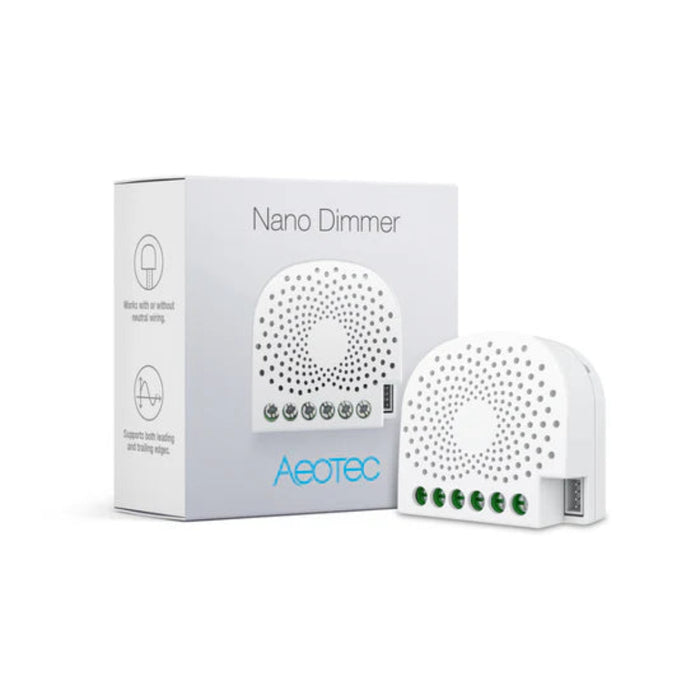

Aeotec Nano Dimmer
Why Aeotec Nano Dimmer?
Replacing existing wall switches is not always necessary to add smart lighting control to your home. Aeotec Nano Dimmer installs discreetly behind a compatible wall switch, allowing existing lighting circuits to become part of a Z-Wave smart home system while preserving the appearance of your current switches.
Designed for both new and existing lighting installations, Aeotec Nano Dimmer provides remote on/off control, smooth dimming, scheduling, and automation. Powered by its dedicated Lighting Engine and 32-bit processor, it automatically optimizes dimming performance for compatible bulbs, including dimmable LEDs and CFLs.
KEY TAKEAWAYS
-
Hidden in-wall Z-Wave smart dimmer module.
-
Converts compatible existing wall switches into smart dimmers.
-
Supports remote control, scheduling, and automation.
-
Compatible with dimmable LED, CFL, halogen, and incandescent lighting.
-
Supports energy monitoring.
-
Functions as a Z-Wave repeater for mesh network extension.
TECHNICAL SPECIFICATIONS
| Specification | Value |
|---|---|
| Product Name | Aeotec Nano Dimmer |
| Category | In-wall Smart Dimmer Module |
| Wireless Protocol | Z-Wave Plus |
| Power Input | 120–240VAC, 50/60Hz |
| Rated Current Output | 1.2A maximum |
| Rated Power Output | 144W (110V) / 276W (230V) maximum |
| Dimming Technology | PWM |
| Energy Monitoring | Yes |
| Repeater Function | Yes |
| External Switch Wiring Length | Up to 10 m (33 ft) |
| Installation Type | Behind existing wall switch |
COMPATIBILITY
Aeotec Nano Dimmer works with:
-
SmartThings
-
Aeotec Smart Home Hub
-
Home Assistant with Z-Wave JS
-
Hubitat
-
HomeSeer
-
Z-Wave certified hubs
-
Dimmable LED bulbs
-
Dimmable CFL bulbs
-
Halogen lighting
-
Incandescent lighting
TROUBLESHOOTING TABLE
| Problem | Cause | Fix |
|---|---|---|
| Lights flicker | Low-wattage load | Install an Aeotec Bypass for compatible low-power lighting |
| Device not pairing | Hub not in inclusion mode | Restart Z-Wave inclusion and add the module again |
| Lights not dimming properly | Incompatible bulb | Use compatible dimmable lighting |
| Module offline | Z-Wave communication issue | Improve mesh coverage or move closer to a powered Z-Wave device |
Q&A / FAQ SECTION
What is Aeotec Nano Dimmer?
Aeotec Nano Dimmer is a Z-Wave smart dimmer module that installs behind a compatible wall switch to add remote on/off and dimming control to existing lighting circuits.
Who should buy Aeotec Nano Dimmer?
Aeotec Nano Dimmer is designed for homeowners who want smart lighting automation while keeping their existing wall switches and décor.
How does Aeotec Nano Dimmer work?
It is wired behind a compatible wall switch and communicates through a Z-Wave network, allowing connected lights to be controlled through automations, schedules, mobile apps, or manual operation.
What's included with Aeotec Nano Dimmer?
Aeotec Nano Dimmer includes the dimmer module and installation documentation. (An optional Aeotec Bypass may be required for some low-power lighting installations.)
What are the Aeotec Nano Dimmer specifications?
Aeotec Nano Dimmer supports Z-Wave Plus communication, operates on 120–240VAC, provides up to 1.2A output, supports energy monitoring, and can control compatible dimmable lighting loads up to 144W (110V) or 276W (230V).
Why Buy Aeotec Nano Dimmer?
-
Turn existing wall switches into smart dimmers.
-
Preserve the appearance of your current switches.
-
Supports remote control and scheduling.
-
Compatible with multiple dimmable lighting technologies.
-
Provides energy monitoring capabilities.
-
Extends your Z-Wave mesh network through repeater functionality.
