Aeotec Nano Switch with Energy-Use Metering

Why Aeotec Nano Switch with Energy-Use Metering?

Many homes already have standard wall switches and power outlets that work perfectly well but lack smart functionality. Aeotec Nano Switch with Energy-Use Metering allows you to add Z-Wave smart control to existing switches, sockets, and non-dimmable lighting without replacing them. Installed discreetly behind a wall switch or outlet, it enables remote control, automation, scheduling, and energy monitoring while preserving normal manual operation.

In addition to on/off control, the energy-metering version can measure both real-time wattage consumption and long-term kWh usage, helping homeowners monitor electricity usage and build energy-saving automations.


KEY TAKEAWAYS

  • Hidden in-wall Z-Wave smart switch module.
  • Adds smart control to existing switches and outlets.
  • Built-in energy monitoring and power metering.
  • Supports automation, scheduling, and remote control.
  • Compatible with multiple switch types.
  • Functions as a Z-Wave repeater to strengthen the network.

TECHNICAL SPECIFICATIONS

Specification Value
Product Name Aeotec Nano Switch with Energy-Use Metering
Category In-wall Smart Switch Module
Model ZW116
Wireless Protocol Z-Wave Plus
Power Input 90–240VAC, 50/60Hz
Maximum Load Up to 15A
Energy Monitoring Yes
Energy Reporting Wattage and kWh
Installation Type Behind wall switch or outlet
OTA Firmware Updates Supported
Security Z-Wave Secure Communication
Repeater Function Yes




COMPATIBILITY

Aeotec Nano Switch with Energy-Use Metering works with:

  • SmartThings
  • Aeotec Smart Home Hub
  • Home Assistant with Z-Wave JS
  • Hubitat
  • HomeSeer
  • Z-Wave certified hubs
  • Existing wall switches
  • Power outlets
  • Non-dimmable lighting circuits
  • Appliances and electronics within supported load limits




TROUBLESHOOTING TABLE

Problem Cause Fix
Device not pairing Hub not in inclusion mode Restart Z-Wave inclusion process
No energy readings Incorrect model installed Verify you have the ZW116 energy-metering version
Load not switching Wiring issue Verify Line, Neutral, and Load wiring
Device offline Weak Z-Wave signal Add powered Z-Wave devices to improve mesh coverage




Q&A / FAQ SECTION

What is Aeotec Nano Switch with Energy-Use Metering?

Aeotec Nano Switch with Energy-Use Metering is a Z-Wave Plus smart switch module that installs behind an existing switch or outlet and provides both smart control and energy monitoring.

Who should buy Aeotec Nano Switch with Energy-Use Metering?

It is designed for homeowners who want to add smart automation and energy tracking to existing switches, outlets, and non-dimmable lighting without replacing wall hardware.

How does Aeotec Nano Switch with Energy-Use Metering work?

The module installs behind a compatible switch or socket and communicates through a Z-Wave network, allowing connected loads to be controlled remotely while reporting power consumption data to a compatible hub.

What's included with Aeotec Nano Switch with Energy-Use Metering?

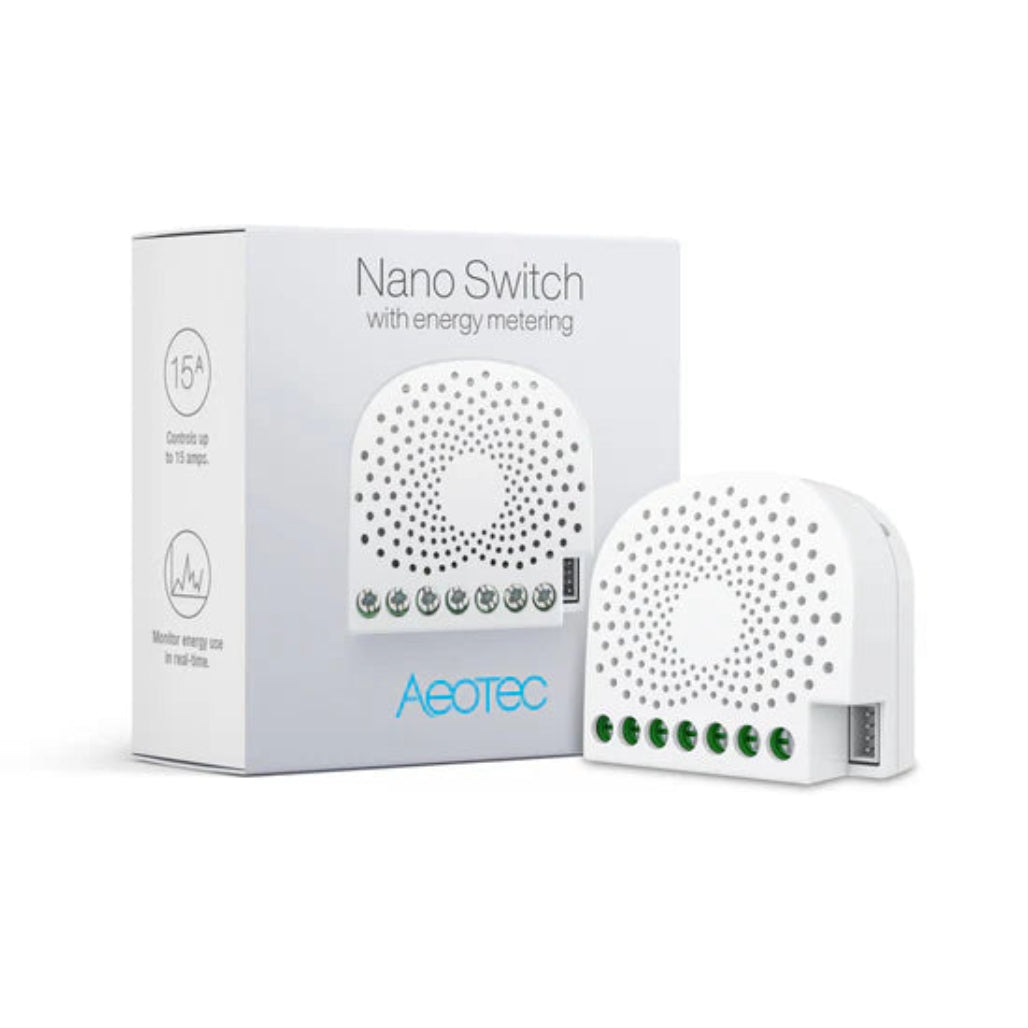

The package includes the Nano Switch module and installation documentation.

What are the Aeotec Nano Switch with Energy-Use Metering specifications?

It supports Z-Wave Plus communication, operates on 90–240VAC power, supports loads up to 15A, provides watt and kWh energy monitoring, supports OTA firmware updates, and installs behind existing switches or outlets.


Why Buy Aeotec Nano Switch with Energy-Use Metering?

  • Add smart control without replacing existing switches.
  • Monitor real-time energy consumption.
  • Track long-term electricity usage.
  • Supports automations and schedules.
  • Hidden installation behind switches or outlets.
  • Extends Z-Wave network coverage through repeater functionality.
